GRD1300-XF

• SIMs: 1
• USB: 1 (For configuration)
• 2G and 2.5G (GPRS, EDGE) - American and European GSM Bands
• Serial ports: 1 (RS232 and RS485)

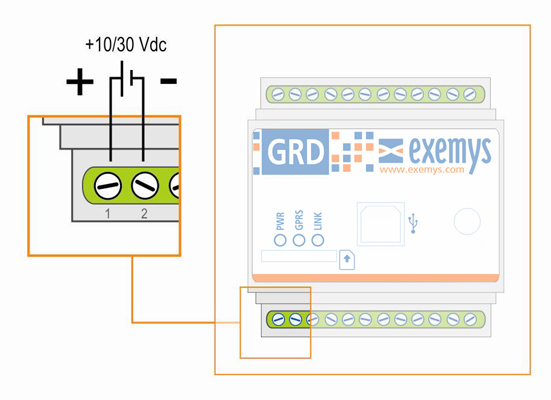

• Power supply requirements: 10 to 30 Vdc

• Modbus inputs/outputs (embedded Modbus master)
• Embedded Modbus slave
• Other protocols using script programming

• Monitoring by WEB page / Database(GPRS datalogger)
• Monitoring from SCADA
• Remote access to serial port
• SMS alarms/control
• Local control using script programming (timing, logic, math)

• GSM / GPRS
• Satellite (with external satellite modem)

Some features are available depending on the firmware version (if you have a previous version please contact us in order to upgrade the unit)

- SMS alarms and control since firmware 4.0.0

- Script Programing since firmware 5.0.0

- Embedded Modbus slave since firmware 5.2.0

- External satellite modem connection since firmware 5.2.0

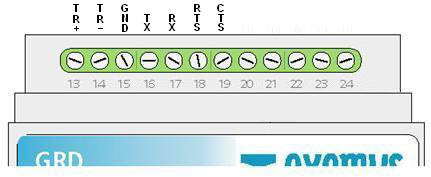

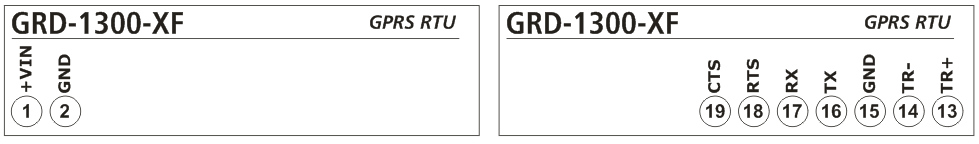

The RS232 port is of the 5-wire DTE type (TX, RX, RTS, CTS, GND) and has a terminal board for its connections.

The RS485 port is of the 2-wire type (TR+ and TR-) and has a terminal board for its connections.

There's no need to configure whether you are going to use the port RS232 or RS485. Just connect the wires to the corresponding terminals.

2017-06-09
