GRD3305-XF

• SIMs: 1
• USB: 1 (For configuration)
• 2G and 2.5G (GPRS, EDGE) - American and European GSM Bands
• Serial ports: 1 (RS232 and RS485)
• Digital Inputs : 4 voltage activated (They can count pulses of up to 50 Hz)
• Analog Inputs: 4 configurable as 0-1V / 0-10V / 4-20mA
• Digital Outputs: 2 open collector type
• Power supply requirements: 10 to 30 Vdc

• Physical inputs/outputs
• Modbus inputs/outputs (embedded Modbus master)
• Embedded Modbus slave
• Other protocols using script programming

• Monitoring by WEB page / Database(GPRS datalogger)
• Monitoring from SCADA
• Remote access to serial port
• SMS alarms/control
• Local control using script programming (timing, logic, math, I/O control)

• GSM / GPRS (2G/2.5G)
• Satellite (with external satellite modem)

Some features are available depending on the firmware version (if you have a previous version please contact us in order to upgrade the unit)

- SMS alarms and control since firmware 4.0.0

- Script Programing since firmware 5.0.0

- Embedded Modbus slave since firmware 5.2.0

- External satellite modem connection since firmware 5.2.2

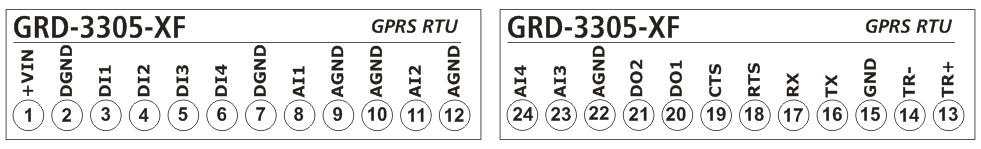

The RS232 port is of the 5-wire DTE type (TX, RX, RTS, CTS, GND) and has a terminal board for its connections.

The RS485 port is of the 2-wire type (TR+ and TR-) and has a terminal board for its connections.

There's no need to configure whether you are going to use the port RS232 or RS485. Just connect the wires to the corresponding terminals.

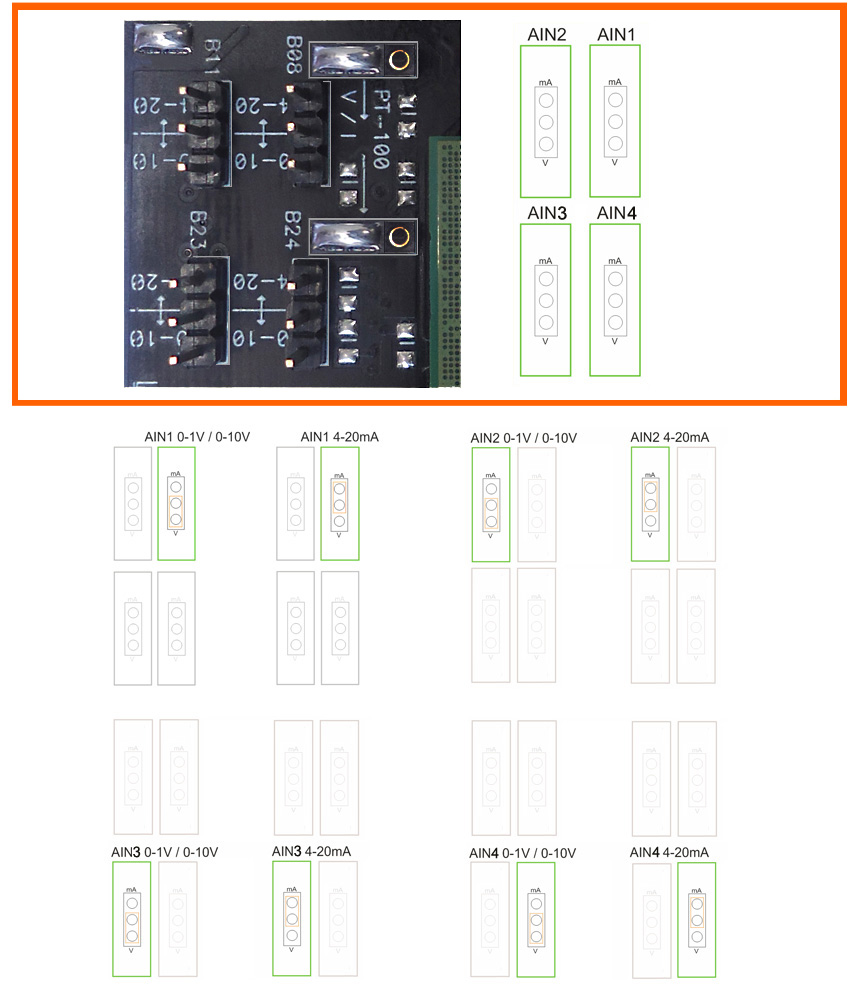

You must select if the analog inputs will be of the 0-10V or 4-20 mA type with the internal jumpers of the equipment. Disassemble carefully and place the jumpers as indicated in the figure. You will also have to configure the GRD from the configuration software indicating the type of inputs you are using.
