Depending on the model, the ERD can have or not physical inputs/outputs.
We will now see the types of inputs/outputs that we can have and which parameters we can configure of each one.
It is important to point out that this configuration is applicable only to physical inputs and not to inputs from the MODBUS queries.

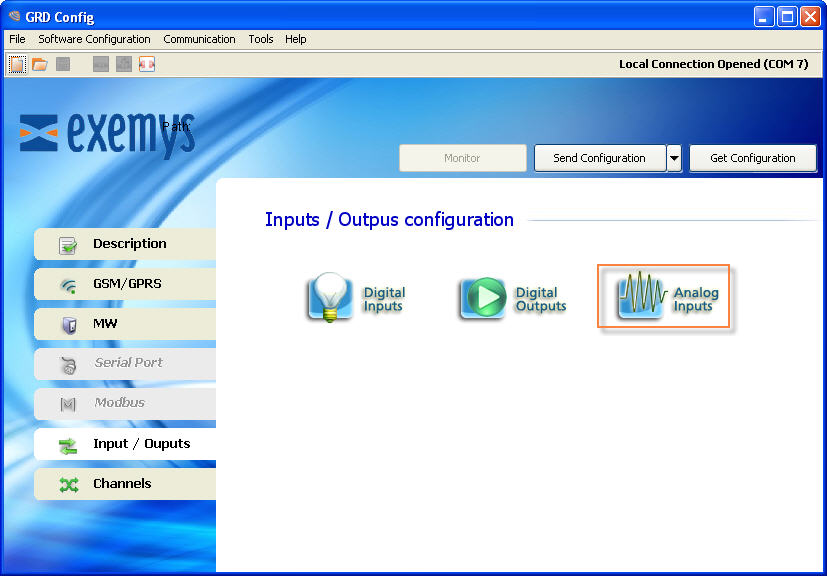

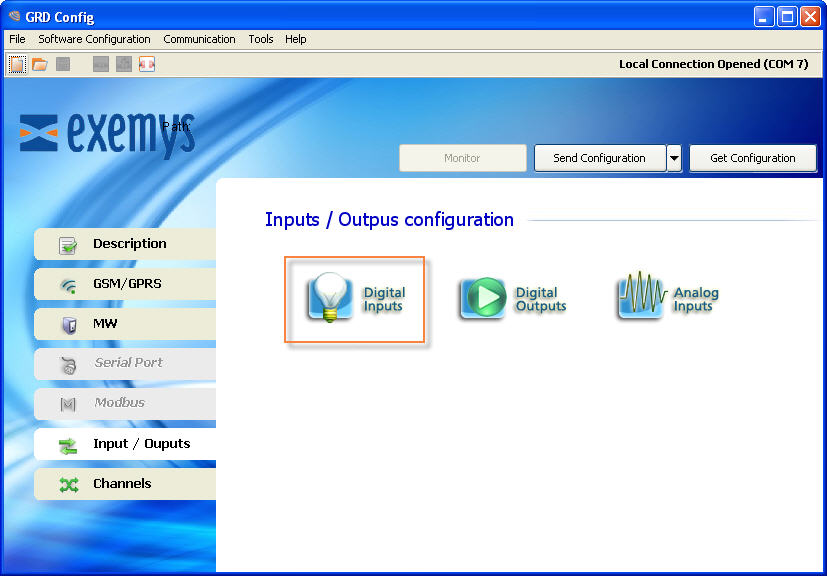

For the configuration of the parameters you will have to enter the “Inputs / Outputs” menu and then select the type of input / output which are:

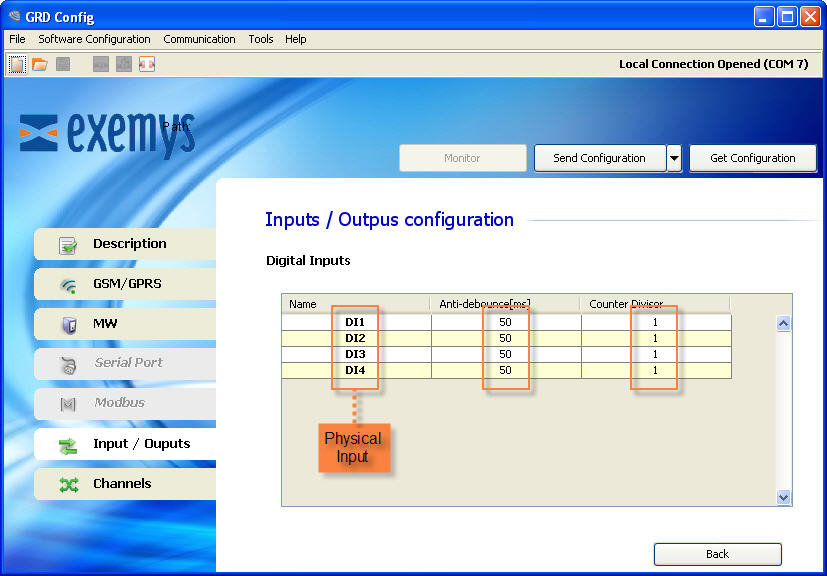

When we enter the configuration of a digital input we will see that we can configure 2 parameters one is the anti-rebound to avoid noise and the counting splitter in case of use as pulse input.
The value of the anti-debounce can be configured between 1 and 250 ms.
The counting divisor can take a value between 1 and 1000.
In the configuration of analog inputs we can select the operational mode depending on the GRD model, this refers to whether we are going to measure voltage or current and its resolution.

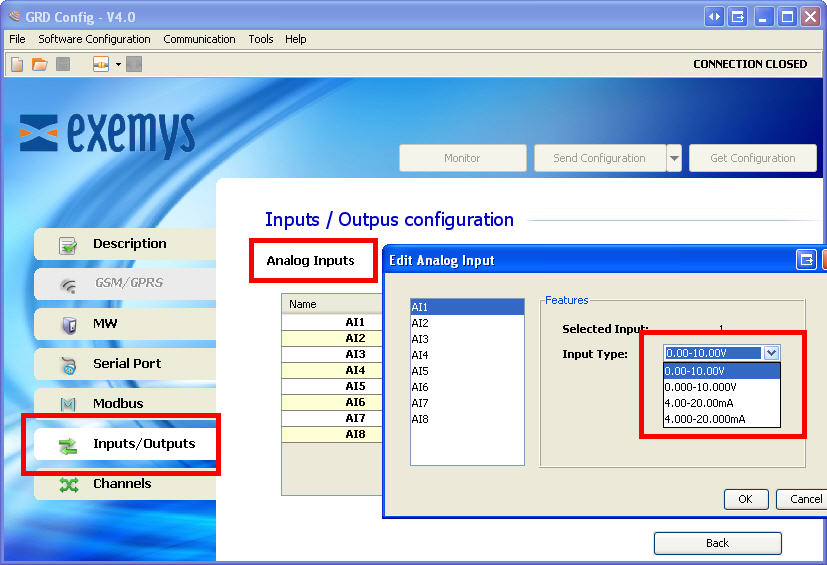

The analog inputs can be configured as follows:
