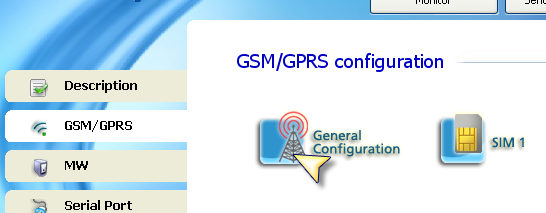

We first have to verify that the SIM has been selected and that it is within the corresponding GSM band. This is done in the following tab: GSM/GPRS -> General Configuration.
If you place a SIM card with and activated PIN (security code), it must be configured in the GRD in order to have access.
|
Remember that if you enter a wrong PIN three consecutive times, the SIM card will block. To unblock it, you will have to enter the PUK of the SIM card. For more information check with the cell phone operator. |

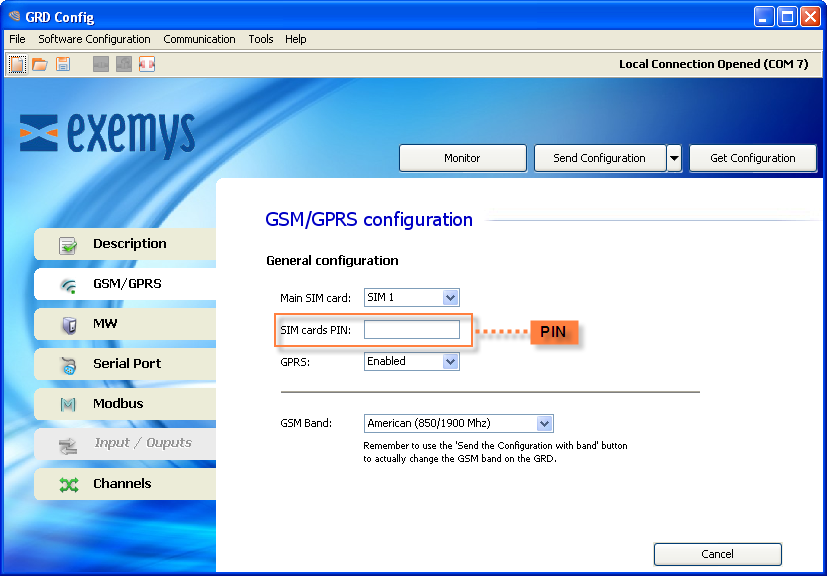

To load the PIN go to the “GSM/GPRS -> General Configuration” tab.
And then load it in the corresponding field.
When the new configuration is applied, the GRD will try to unblock the SIM Card with the entered PIN. If this is the correct one, the registration process will be initiated.
To verify if the SIM card that has been placed is blocked or if the configured PIN is correct, check the SIM status in the monitoring option.

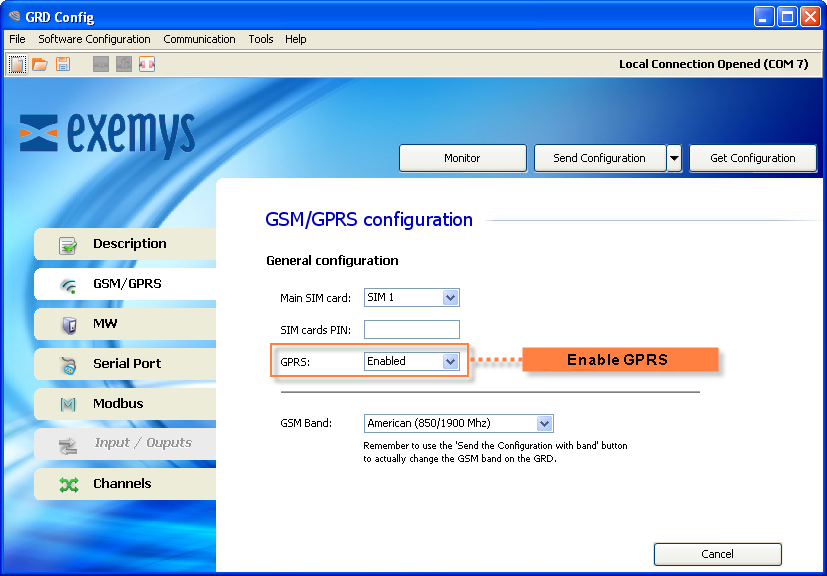

The enabled option of the GPRS must be verified in the “GSM/GPRS -> General Configuration” tab.
|
GPRS is only used if the GRD needs to be connected to the MW. If you are only planning to send SMS you can disable GPRS. |

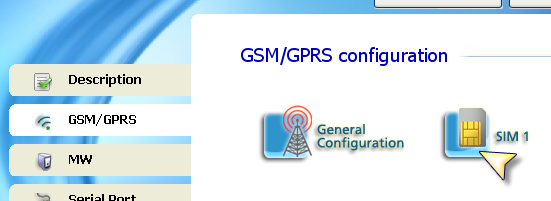

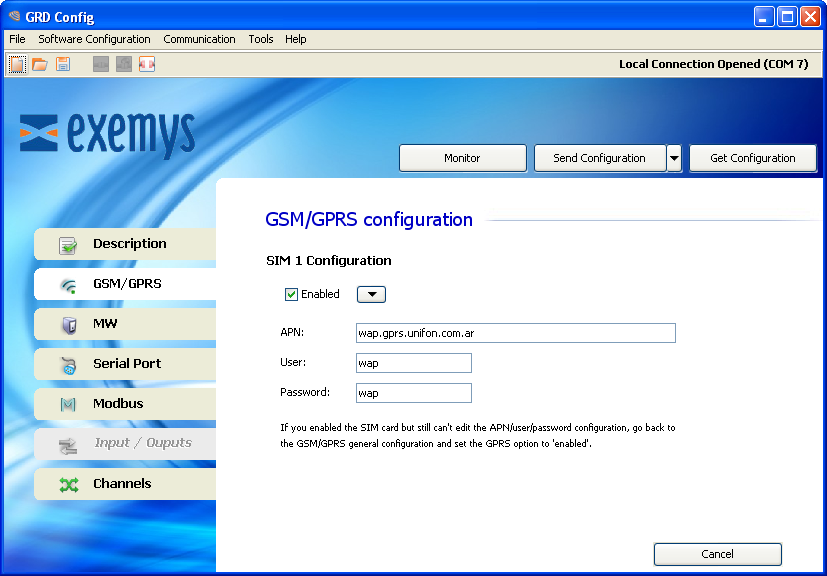

The following step is the correct configuration of the GPRS service. For this, you have to tell the equipment the corresponding operator of the installed SIM card or the APN parameters, user and password. These parameters are found in the “GSM/GPRS -> SIM x” tab (Where x is the SIM number, since it can be dual depending on the model).

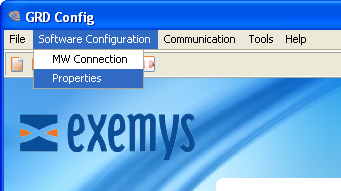

The GPRS parameters can be saved so they won’t have to be entered every time the GRD is used with the same cell phone operator. To do this you have to go to “Software Configuration -> Properties”.

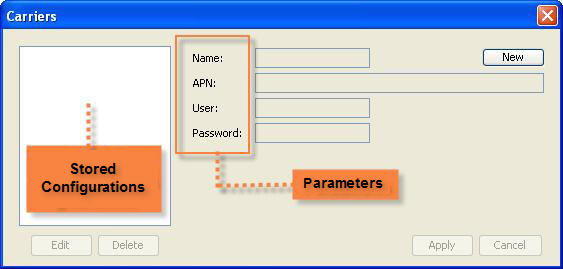

A window will be displayed on which we will be able to enter a name to recognize the configuration, APN, user and password.
