The status and configuration of GRD-MQ equipment can be verified using SMS. It is also possible to modify the configuration with the same system.
The SMS commands supported by the GRDs are detailed below. Every time that the equipment recognizes the command as valid it will respond with another message to the telephone number that sent it. When a configuration command is sent it will respond either that it was applied successfully or that an error occurred.
|
Before starting you must know the password allowing the modification of the configuration of the equipment. The factory configuration disables the password, then this field will be left empty unless it is enabled. |
All commands are not case sensitive.
|
In all messages the separation between words must be exactly one space. |
Configuration SMS can be password protected. This password must be added at the end of all the configuration messages.

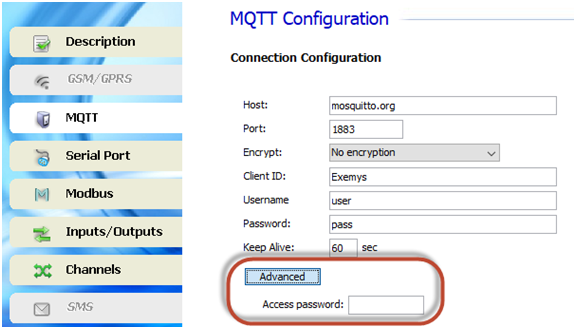

You can set it and edit it on the "Advanced" section of the MQTT/Connection tab.
Command |
Description |
STATE o ? |
Returns the status of GRDs communications |
Note: This command does not require a password.
Command |
Description |
LIST |
Returns the basic equipment configuration, the model and serial number. |
Example of a response:
MODEL: GRD3625-MQ-3G / SN: 124 / GPRS: apn/user/password
Note: This command does not require a password.
Command |
Description |
SIGNAL |
Signal level |
The signal level can vary between -113 dbm and -51 dbm
Note: This command does not require a password.
Command |
Description |
VERSION |
Returns the versions of Hardware, Software and IMEI |
Example of a response:
FIRbrokerARE: 1.0 HARDWARE: 1.0 IMEI 123456789123456
Note: This command does not require a password.
Using this command you can configure the apn, user and password of the GPRS. This command will also enable GPRS if it was disabled
Command |
Description |
GPRS apn user password [password] |
Configures the GPRS service |
If the configuration was successful the GRD-MQ will respond “GPRS OK”.
Command |
Description |
GPRSOFF [password] |
Disable GPRS service |
If the configuration was successful the GRD-MQ will respond “GPRSOFF OK”.
With this command you can change the URL or IP address and the connection port to the broker.
Command |
Description |
CON URLorIP port [password] |
Configures the URL or IP and the connection port to the broker |
Where:
Parametro |
Description |
Value |
URLorIP |
URL or IP where the broker is located |
xxx.xxx.xxx.xxx |
port |
TCP port in which the broker expects the GRD-MQ connections |
[1…65535] |
Example: CON 200.89.185.59 1026 password
If the configuration was successful the GRD-MQ will respond “CON OK”.
Client ID, User, Password:
Command |
Description |
MQTTID cid |
cid is the Client ID |
| MQTTUSR usr | usr is the MQTT user's name |
| MQTTPASS pss | psss the MQTT password |
The two following commands can be used it the user name or password are to long to fit in a single SMS. The text configured on this messages will be attached to the previous ones.
Command |
Description |
MQTTUSRX usrx |
usrx MQTT user's name continuation |
| MQTTPASSX pssx | pssx MQTT password continuation |
Command |
Description |
DISC [password] |
This command disconnects the GRD-MQ from the broker preventing a reconnection until the connection is reconfigured. |
Command |
Description |
PASSW newpassword [password] |
Modifies the password used by the GRDs for SMS and the connection to the broker |
The password can have a maximum of 8 characters and is not case sensitive.
Configuring a new password if you did not have any:
PASSW newpassword
Configuring a new password if you already have one:
PASSW newpassword previouspassword
Erasing the password:
To leave the equipment without a password you must send a message leaving 2 spaces between the command and the previous password.
PASSW previouspassword
Command |
Description |
RESET [password] |
Reboots the GRD-MQ |
It's possible to read the value of the channels by SMS
Digital Inputs:
Command |
Description |
GETI [I channel] * |
Reads channel I. (Read note*) |
| GETI [first I channel]…[last I channel] | Read several I channels |
| GETI | Reads all I channels (Max. 50 channels in on SMS). |
Digital Outputs:
Command |
Description |
GETO [O channel] * |
Reads channel O. (Read note*) |
| GETO [first O channel]…[last O channel] | Read several O channels |
| GETO | Reads all O channels (Max. 50 channels in on SMS). |
Analog Inputs:
Command |
Description |
GETAN [AN channel] * |
Reads channel AN. (Read note*) |
| GETAN [first AN channel]…[last AN channel] | Read several AN channels |
| GETAN | Reads all AN channels (Max. 15 channels in on SMS). |
Pulse Inputs:
Command |
Description |
GETPI [PI channel] * |
Reads channel PI. |
| GETPI [first PI channel]…[last PI channel] | Read several PI channels |
| GETPI | Reads all PI channels (Max. 15 channels in on SMS). |
If you receive three point (...) ending the SMS, it means that more information will be sent on another SMS.
*Note: If you configured an SMS alarm for this channel you will receive the full text you configured. The text will change depending on the state of the I/O. Please read SMS alarms section for further information.
Setting outputs and pulses
You can set an output or pulse channel by sending an SMS to the GRD.
|
This commands can only be sent from the phone numbers added to the GRD-MQ "Phone book". Please read SMS alarms section for further information. |
Command |
Description |
SETO [O channel] [state] |
The O channel will be set to "state" |
State can be "ON" or "OFF"
Command |
Description |
SETAN [AN channel] [value] |
The AN channel will be set to "value" |
Only applies to analog channels mapped to script variables or Modbus queries
Command |
Description |
SETPI [P channel] [value] |
The P channel will be set to "value" |
The value can be between 0 and 1.000.000.000
Script control
Command |
Description |
STARTSCRIPT [password] |
Script interpreter will set to 'run' mode |
Command |
Description |
STOPSCRIPT [password] |
Script interpreter will set to 'stop' mode |
