cLAN2205-XF / cLAN2205-MQ
Hardware features
- Ethernet port: RJ45 10/100 Mbit
- Serial ports: 1 RS232 and 1 RS485
- Digital Inputs/Outputs:
10 Configurable
- As inputs: voltage activated (They can count pulses of up to 45 Hz)
- As outputs: open collector type
- Power supply requirements: 10 to 30 Vdc
- Dimensions: 100 x 22.5 x 112 mm (Height x Width x Length)
- Operation Temperature: -15°C a +65ºC
Data Acquisition
- Physical inputs/outputs
- Modbus inputs/outputs (embedded Modbus master)
- Embedded Modbus slave
- Other protocols using script programming
Operating modes:
- XF model : Monitoring by WEB page / Database (Ethernet datalogger)
- MQ model : MQTT client
- Monitoring from SCADA
- Remote access to serial port
- Telemetry Controller
- Local I/O control (using the script programming feature)
- Direct connection with SCADA using its Modbus RTU and Modbus TCP slaves
Server link :
- Ethernet (Local network or using the Internet)
- Satellital (with external satellite modem, XF model only)

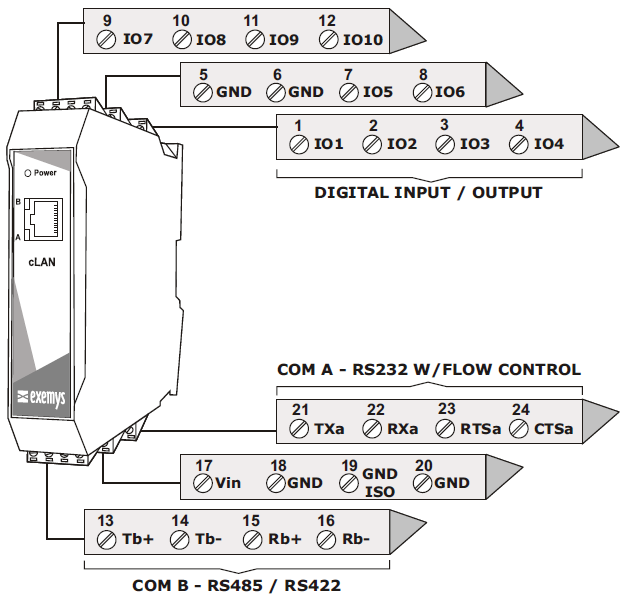

Wiring

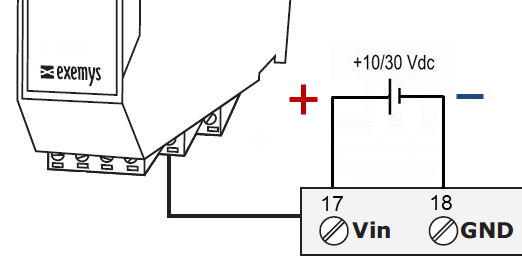

Wiring – Power supply
Wiring – RS232 port – RS485 port

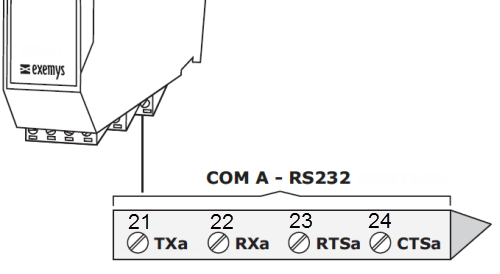

The RS232 port is of the 5-wire DTE type (TX, RX, RTS, CTS, GND) and has a terminal board for its connections. GND can be connected to terminal 8.
The RS485 port is of the 2-wire type (TR+ and TR-) and has a terminal board for its connections.
The RS485/RS422 is avaiable on 4 terminals (Tb+ y Tb-, Rb+ y Rb-).

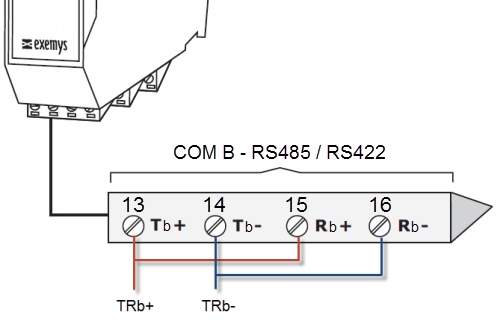

To use it in RS485 mode put together Tb+ with Rb+ and Tb- with Rb- as shown in the following diagram
