EtherNet/IP to Modbus Serial Converter


EtherNet/IP (Ethernet Industrial Protocol) is an industrial network protocol designed for real-time communication between devices in automation and industrial control environments. It is based on the widely used Ethernet standard, but optimized for industrial applications.

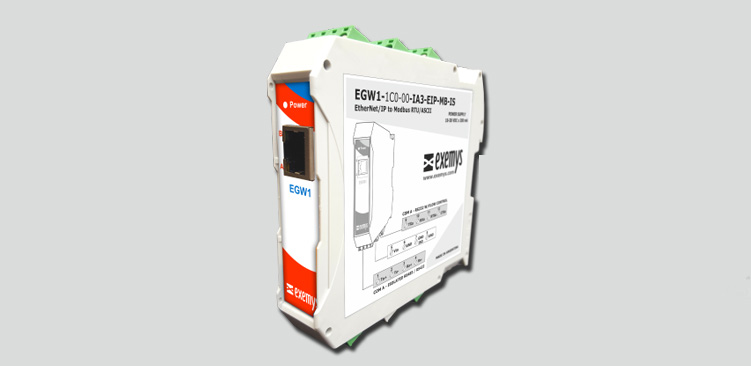

The EGW1-EIP-MB is a converter that enables communication between EtherNet/IP and Modbus Serial. This device allows an EtherNet/IP master to read from and write to Modbus serial slave registers.

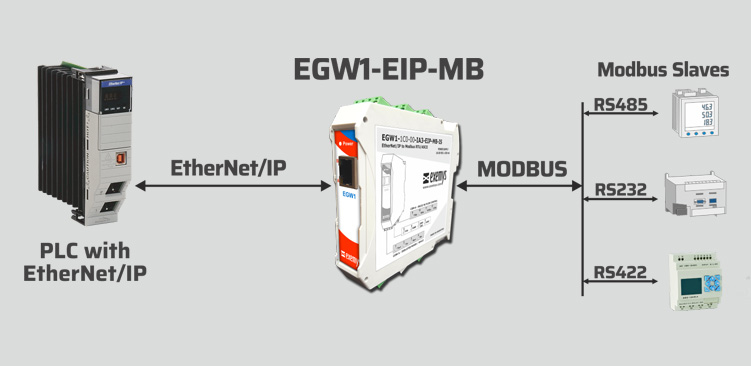

As a Modbus serial master, the EGW1-EIP-MB collects data from slaves connected via its RS232/RS485/RS422 port and stores the acquired values in a data map with a capacity of up to 1000 words. At the same time, it operates as an EtherNet/IP slave, responding to queries from the EtherNet/IP master regarding this data map.

  • EtherNet/IP Protocol in Slave Mode
    - MicroLogix Class 3 Read/Write: 500CPU and PLC5
    - CompactLogix Class 3 Read/Write: PLC3 Typed, PLC5 Typed, and SLC Typed
    - CompactLogix Class 1: 200 read-only words
  • Modbus Serial RTU/ASCII Protocol in Master Mode
  • 1000-word Modbus Data Map
  • Configuration via HTTP Server and RS232 Serial Console
  • Device Firmware Update via Web Page

  • 1 Ethernet Port 10/100 Base T, with RJ45 connector
  • 1 Serial Port RS232/485/422 with Removable Industrial Terminal Blocks
  • Power Supply: +10 to +30 VDC
  • Industrial DIN Rail Enclosure

    • PART NUMBER OBSERVATIONS
    EGW1-1C0-00-IA3-EIP-MB-IS - 1 Serial Port RS232/485/422
    - 1 Ethernet Port 10/100 Base T
