PORTS MODBUS MULTIPLEXER & CONVERTER

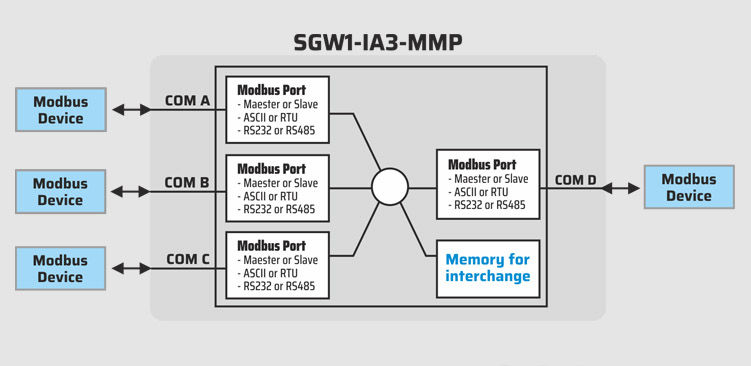

The SGW1-IA3-MMP is a multifunctional device designed to facilitate multiplexing, conversion, and data exchange between Modbus Serial devices. It supports the following functions:

1) Modbus Port Multiplexing (Masters or Slaves)
2) Conversion of Modbus ASCII to Modbus RTU, with different baud rates on RS232 or RS485 ports
3) Register Exchange Between Modbus Masters via a shared memory buffer


  • Equipped with 4 RS232 or RS485 Serial Ports with Modbus Protocol
  • Supports up to 3 Master Ports and up to 3 Slave Ports
  • Transparent Operation – No Register Mapping Required
  • Easy Configuration via USB
  • DIN Rail Mounting, Flame-Retardant Industrial Enclosure
  • Wide Power Supply Range: +10 to +30 VDC

    • MODELS DETAILS
    SGW1-4B0-00-IA3-MMP 4 RS232/RS485 ports configurables
    SGW1-13B0-00-IA3-MMP-CF 1 configurable RS232 with RTS for radio control + 3 RS232/RS485 ports configurables
