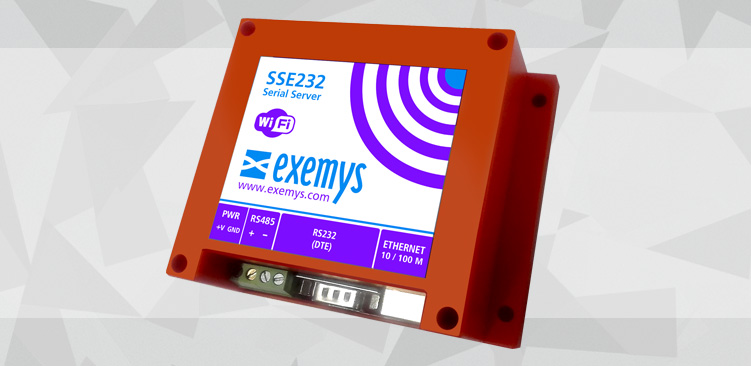

Wi-Fi Serial Server

The SSE232-LE-WIFI is a device designed to facilitate the integration of equipment with RS232/485 communication ports into Ethernet TCP/IP and Wi-Fi networks in a completely transparent manner. This product is ideal for environments where connectivity and reliability are essential.

The converter can be used through the following methods:
• A SCADA Software
• A Custom TCP Software
• The Original Software of the device to be connected + a COM Port Redirector

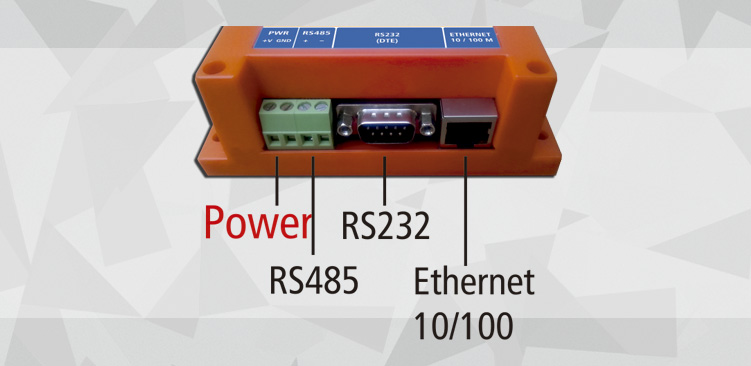

  • 1 Wi-Fi Port with an internal antenna
  • 1 Ethernet 10/100 Base-T Port
  • 1 Serial Port (RS232 or RS485)
  • Suitable for DIN rail or flat surface mounting
  • Easy password-protected configuration via Web browser
  • Web-based monitoring and operational statistics
  • Automatic recovery in case of communication loss
  • SNMP trap sending for event notifications
  • Wide power supply range: +10 to +30V DC

  • Connection with Serial Port Redirector
  • Point-to-Point TCP Tunnel
  • Point-to-Point UDP Tunnel
  • Point-to-Multipoint UDP Tunnel
  • Multipoint UDP Tunnel

    • PART NUMBER DESCRIPTION
    SSE232-1B0-00-LE-WiFi 1 port configurable RS-232 or RS-485.
