INDUSTRIAL SERIAL SERVER

How does it work?

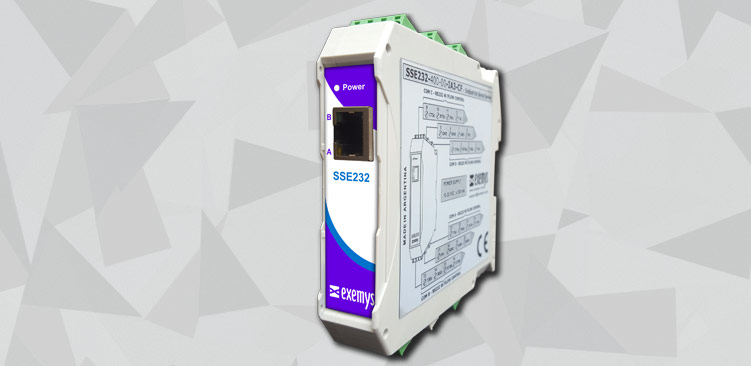

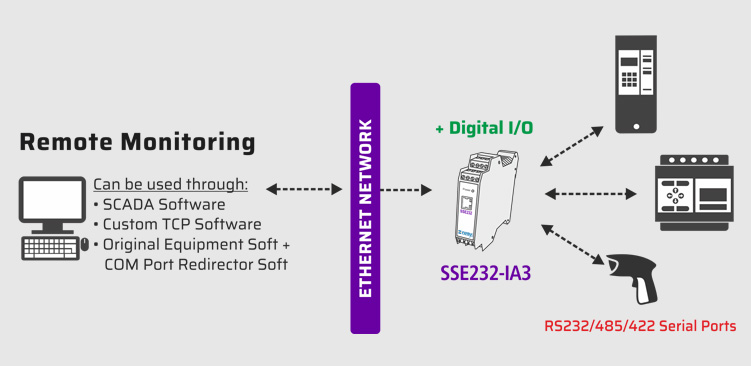

SSE232-IA3 Is an Ethernet communications device that can connect any serial device (RS232/RS485/RS422) to a Standard Ethernet network. Now, you can connect two remote RS232 devices through an Ethernet network. In addition, you can get remote access to those devices from a PC.
As a special feature, the SSE232-IA has built-in digital inputs / outputs. This feature is different from similar devices, as it provides a comprehensive solution for remote control applications, without the need for additional input / output modules.

  • DIN rail mounting, temperature-resistant Industrial Case.
  • Wide range power supply (10 to 30 Volts DC).
  • Industrial pluggable terminal blocks.
  • Automated recovery in case of lost communication.
  • COM Port redirector software enables existing software Applications to access connected devices.
  • Digital Input Notification through SNMP traps. SNMP Digital Outputs control.
  • Easy Web browser configuration.
  • Device search utility.
  • Converts serial ports to Ethernet TCP/IP or UDP/UP
  • Up to 4 serial ports RS232 / RS485 / RS422
  • Serial port transparent Tunnel
  • Ethernet I/O, with built-it digital inputs and outputs
  • Multi-drop over Ethernet. One server, many clients.

    • PART NUMBER DETAILS
    SSE232-400-00-IA3-CF 4 RS232 ports with flow control
    SSE232-4B0-00-IA3 4 configurable RS232/RS485 ports5
    SSE232-1C0-00-IA3-IS 1 configurable RS232/Isolated RS485 / Isolated RS422 (half-duplex)
    SSE232-1C0-10C-IA3-IS 1 configurable RS232/Isolated RS485 / Isolated RS422 + 10 configurable digital inputs/outputs
    SSE232-200-10C-IA3 2 RS232 ports with flow control + 10 configurable digital inputs/outputs
