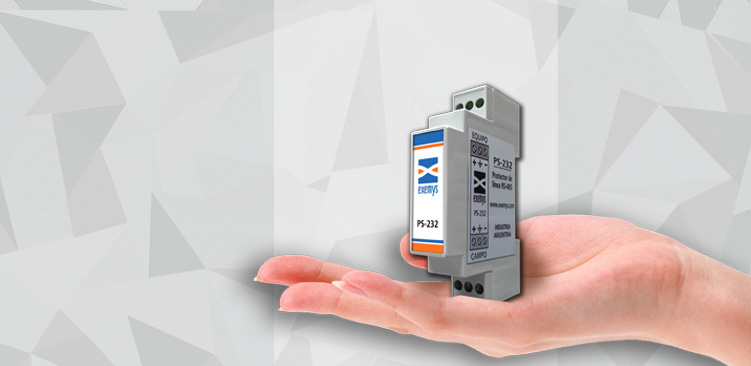

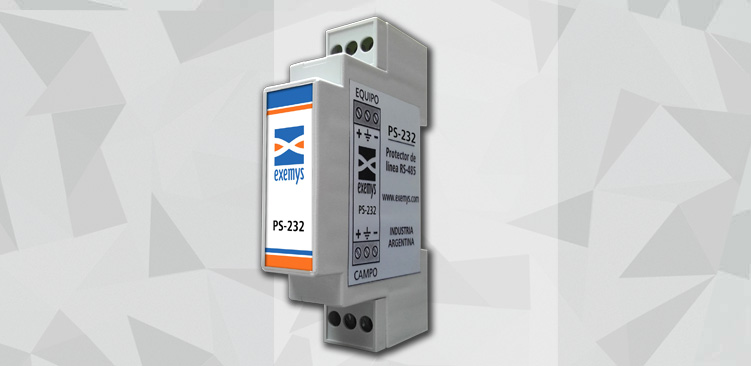

PS-232

Transient peaks and overvoltages in the data lines, will be produced by the induced energy caused by the conditions or by switching heavy inductive loads.
The PS-232 module was designed to protect your electronic equipment, of these potentially destructive interferences.

Documentation

Datasheet

Generale Features

  • Protects from both Surges and Overcurrents

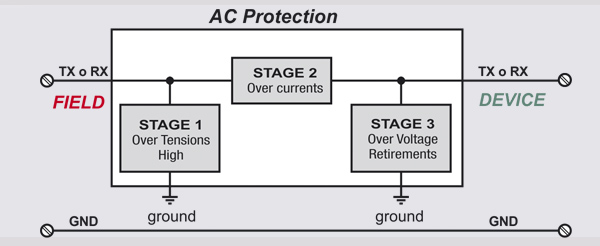

  • It has a cascade protection circuit, with 3 stages
  • Protects against Alternating Currents and also Continuous Alterations
  • It is built with redundant, state-of-the-art components
  • Automatic reset after alternating or direct current peaks

  • CHARACTERISTICS

    Posee un circuito de protección en cascada, de 3 etapas
  • Protection against transient peaks: 265Vrms and 20KA-
  • Protection against AC disturbances: 120 Vrms-
  • Meets minimum requirements of RS-485:
    - ESD (Electrostatic Discharges): IEC 61000-4-2 Level 4 (8KV per contact/15KV per air)
    - EFT (Fast Electrical Transients): IEC 61000-4-4 Level 3, 1KV, 20A
    - Current Surge/Lightning: IEC 61000-4-5 Level 4, 4KV, 95A
