Serial to Ethernet Converter with Dual Ethernet Switch

How does it work?

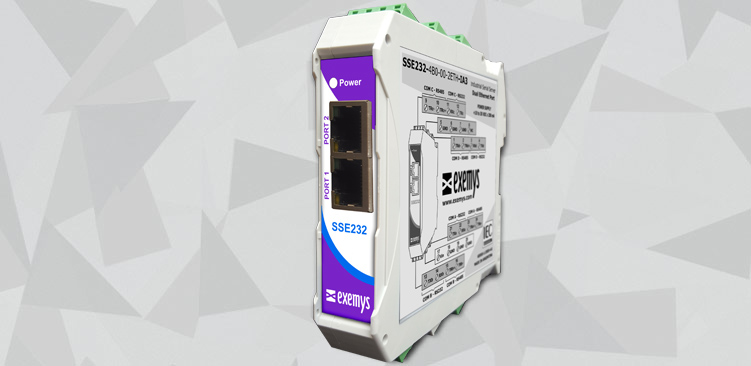

The SSE232-2ETH-IA3 Industrial will allow you to connect your devices with RS232/485/422 communication to an Ethernet TCP/IP network with Industrial Switch with 2 RJ45 ports, for an easy and fast integration in panels.


  • DIN rail mounting, temperature-resistant Industrial Case.
  • Wide range power supply (10 to 30 Volts DC).
  • Industrial pluggable terminal blocks.
  • Automated recovery in case of lost communication.
  • COM Port redirector software.
  • Digital Input Notification through SNMP traps. SNMP Digital Outputs control.
  • Easy Web browser configuration.
  • Software for searching Exemys devices on the network.

  • Converts serial ports to Ethernet TCP/IP or UDP/UP
  • 2-Port Ethernet RJ45 Switch
  • Up to 4 serial ports RS232 / RS485 / RS422
  • Serial port transparent Tunnel
  • Ethernet I/O, with built-it digital inputs and outputs
  • Multi-drop over Ethernet. One server, many clients.

    • PART NUMBER DETAILS
    SSE232-4B0-00-2ETH-IA3 4 configurables RS232/RS485 ports - 2 Ethernet ports
    SSE232-1C0-00-2ETH-IA3-IS 1 configurable RS232/RS485 Isolated port / RS422 Isolated (half - duplex) 2 Ethernet ports
