Modbus Serial to TCP Converter with Ethernet and Wi-Fi

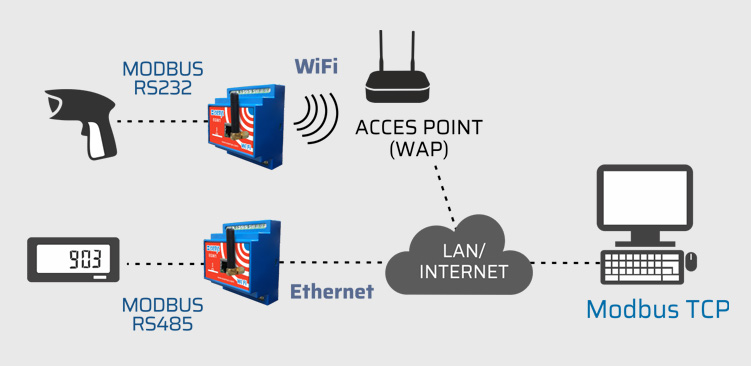

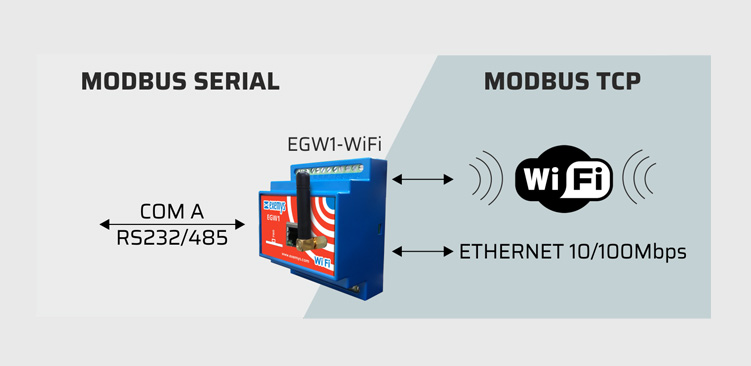

The EGW1-IA3-MB-WIFI module is a Modbus Serial to Modbus TCP converter, designed to integrate industrial equipment with MODBUS RS232/485 communication into Ethernet TCP/IP or Wi-Fi networks.


FEATURES

  • Modbus Serial to Modbus TCP Converter (Wi-Fi and Ethernet)
  • Supports Modbus TCP, ASCII, and RTU – Master or Slave
  • Up to 16 simultaneous Modbus TCP connections
  • Up to 6 Digital I/O
  • Wi-Fi Communication 802.11 b/g
  • RS-232 and RS-485 Serial Ports
  • Ethernet Port for Configuration and Operation
  • Security with WEP, WPA, and WPA2 Encryption
  • Web-Based Usage Statistics
  • Power Supply: +10 to +30VDC
  • DIN Rail Industrial Mounting

    • ORDERING INFORMATION

    EGW1-1B0-00-RM-WiFi
  • 1 Serial Port RS232/485
  • 1 Ethernet Port
  • 1 WiFi Port


    • EGW1-1B0-6C-RM-WiFi
  • 1 Serial Port RS232/485
  • 1 Ethernet Port
  • 1 WiFi Port
  • 6 digital I/O configurables
